25L Hydraulic Hollow Blow Molding Machine

This 25L blow molding machine is suitable to produce big tanks under 25 Liters. This machine equipped with accumulated die head and parison controller to control the product quality.
Quantity:
  • 25L
  • SANQIANG

       This type of machine works by hydraulic power, which could produce max. 25 Liter tanks. This machine equipped with accumulated die head, parison controller, every hour could produce 40 pieces. The machine controls by PLC system, operator could control machine by touch screen. The HDPE/PP material could be used by this machine. The storage tank, oil tank, water tanks and chemical tanks could be produced by this 25L blow molding machine.



Video Demo:



Name

Parameter

Max. Product Volume

25L

Work Station

Single

Raw Material:

HDPE、PP、ABS、PA etc.

Extruder Electric Motor Power

30kw

Oil Pump Motor Power

18.5kw

Screw Rod Dia.

80mm

Screw Rod Length/Dia.

25/1

Screw Rod Rotation Speed

10-80rpm/min

Plasticizing Capacity(HDPE)

80-100 kg/hr

Production Capacity(free load)

200pc/hr

Die Max. Dia.

280mm

Clamping force

100KN

Installation Capacity

60kw

Average Energy Consumption

40kw

Machine Outside Dimension
(L×W×H)

3.5×2.2×2.8m

Machine Weight

7T



Machine Photo:

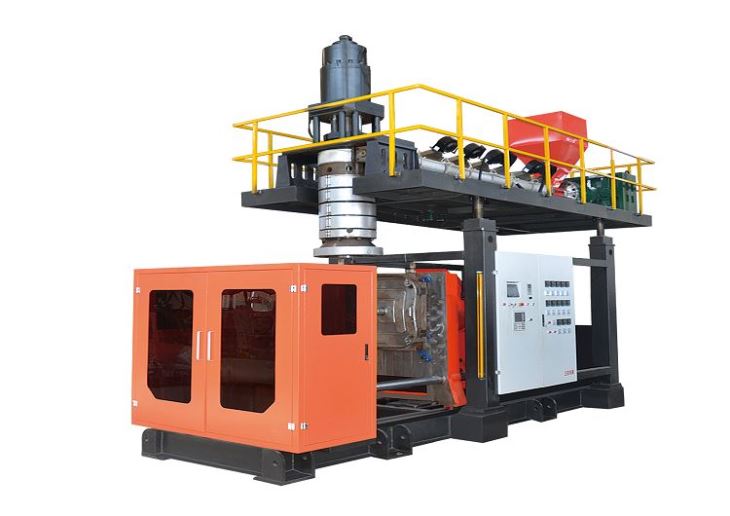

Hydraulic Hollow Blow Molding Machine (2)


This blow molding machine can produce 25 liter plastic drums ,jerry cans. Also can with cladding layer,liquid view line. This machine is full hydraulic machine with auto deflashing,single head single station.

After Sales Service: buyer should pay for all fees for flight, accommodation and etc, seller could come to buyers’ factory to install and adjust machine.


Warrenty: We warranty the quality of this machine for 12 months, if there is any problem with the machine, or any main parts are broken, we will repair it or replace new for free.

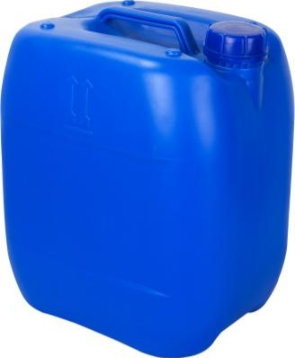

The below tanks could be produced:

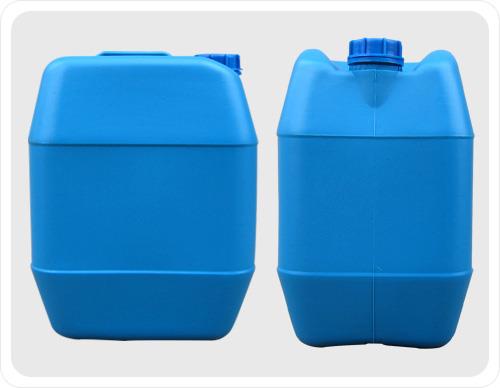

Hydraulic Hollow Blow Molding Machine (1)

582606ad12173e5042adcbf639da96c
