SQ-6-S
SANQIANG
This model of machine has 6 patents, which is the first invention in China. It is suitable for blowing 3L-12L barrels and pots. Six rotational stations, single or double die head to blow the bottles automatically. The output is about 700 pieces per hour (take 5 L bottle as example). The whole servo system saves 400-600 yuan per day. Achieve real high efficiency and energy saving. It is the substitute of traditional hydraulic machine.
Equipment introduction:
1: high output: take 3L washing liquid bottle as an example: about 17000 in 24 hours.
2: power saving: full servo operation, the average power of the mold closing part is about 10kW, and the annual power saving cost is about 200000.
3: low mold cost: This machine is unified into a sub mold for edge punching, only one sub mold can be made.
Product features:
1. The output is high. Take 3L washing liquid bottle as an example, the output is about 17000 in 34 hours;
2. Energy saving, full servo system without oil pump motor, total power 10KW (excluding extrusion part);
3. The single parison is easy to adjust and operate;
4. Small products can be used as single and double die heads;
5. The mold cost is low, the single deflashing device is only at last step of the line, so it is not necessary to make deflashing devices each mold;
6. The patented of this machine is the first in China, and is the ideal replacement product of the double station multi-mode head hydraulic machines;
Video Demonstration as below:
3D High Speed Rotary Blow Molding Machine
Video for 10L Barrel Production
Machine Parameters:
Item | Parameter | Remarks |
No. of Die head | 1-2 | |
Working Station | 6 | |
Screw diameter | ¢120 | L/D：1:25 |
Plasticizing capacity | 260KG/H | |
Production Capacity | 5 sec/mold | free load |
Max product volume | 5L | can produce 3L-12L |
Machine size | 7800*3900*3000 | L*W*H |
Weight | 22T | |
Power | 3P+1N-50HZ | 380V/220V |
Compressed air consumption | 1.2m³/min | 8KG |
Cooling water consumption | 1.0-1.5m³ | |
Total power | 145kw | |
Average power consumption： | 70KW | Servo 10KW, others 60KW |
Extruder motor | 75kw | 1 |
Extruder heating | 36KW | 9 zone |
Machine hands | 1.85KW | 2 |
Driver motor | 7.5KW | 1 |
Servo parison controller | 1.8KW | 1 |
Open and close molds motor | 21KW | 6 |
Clamping force | 5 Ton | |
Template size | 350*400MM | W*H |
Template Distance | 210-500MM |

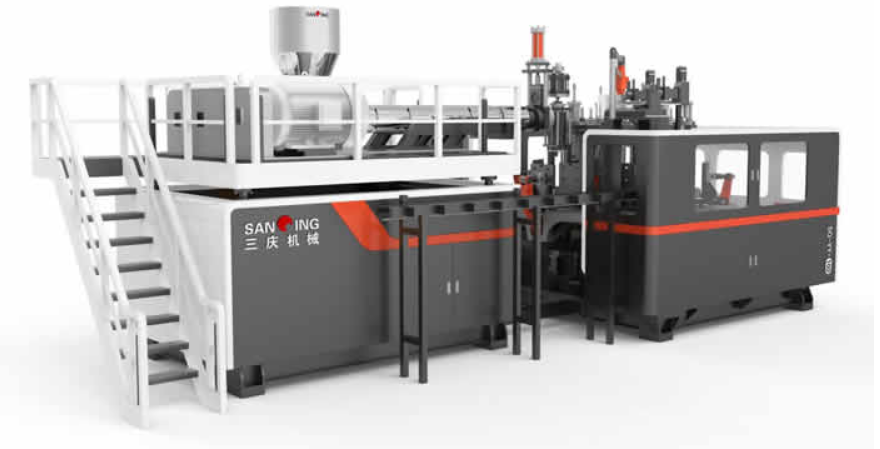

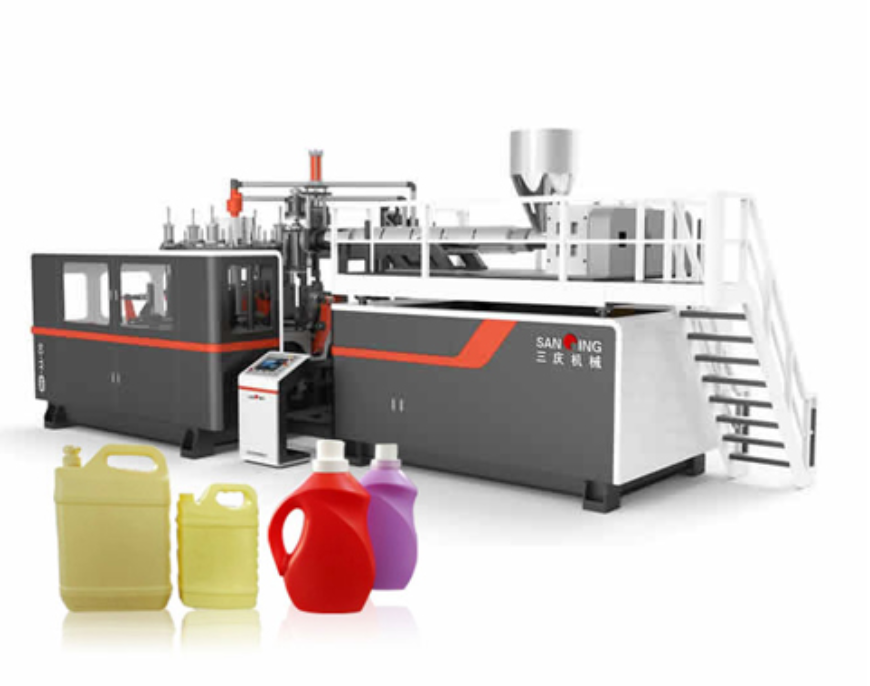

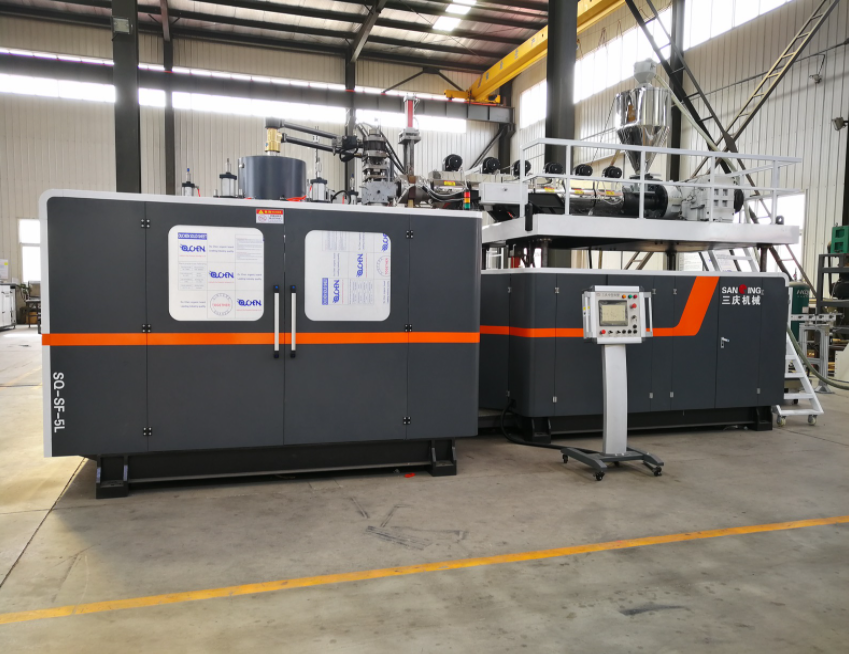

Machine Photos as below:

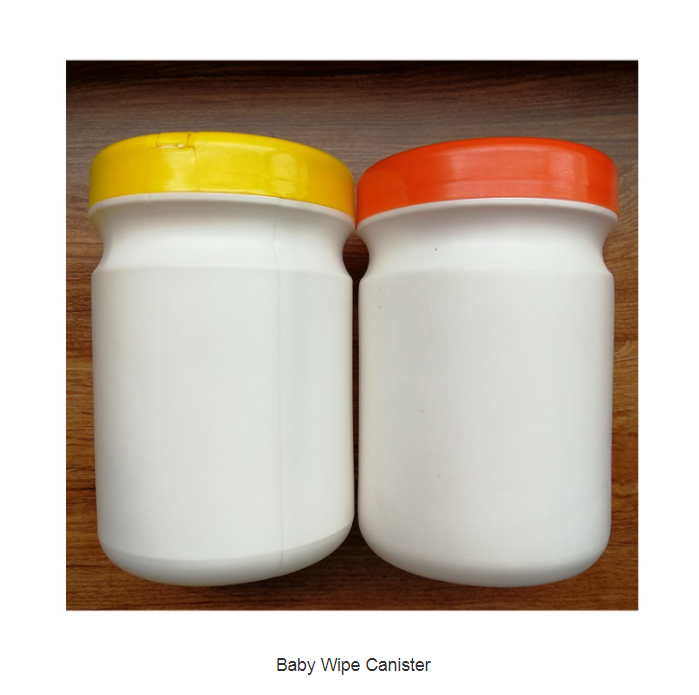

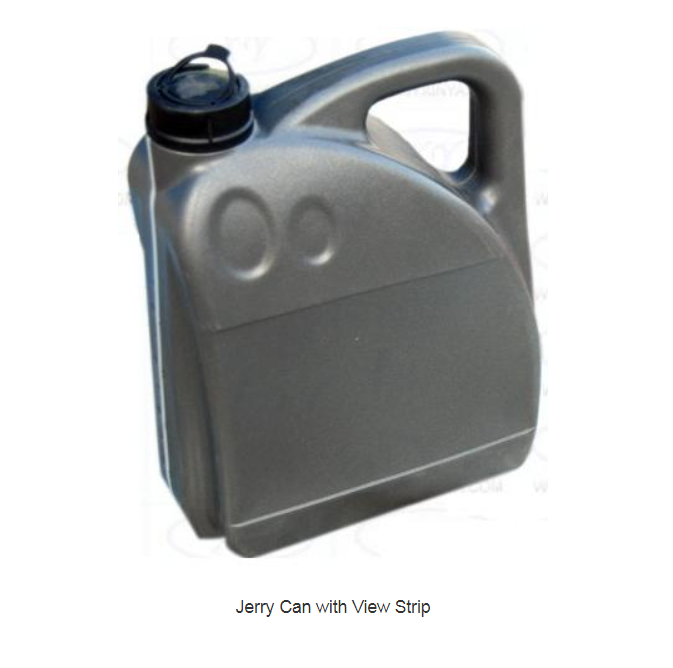

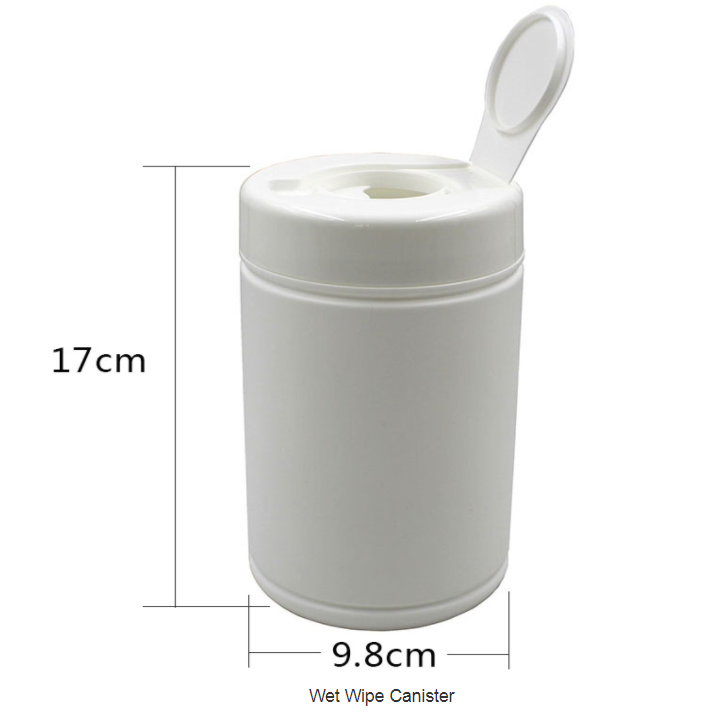

This Machine could produce the below Products:
Auxiliary Machines
Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:
1, Air compressor: use to supply compressed air

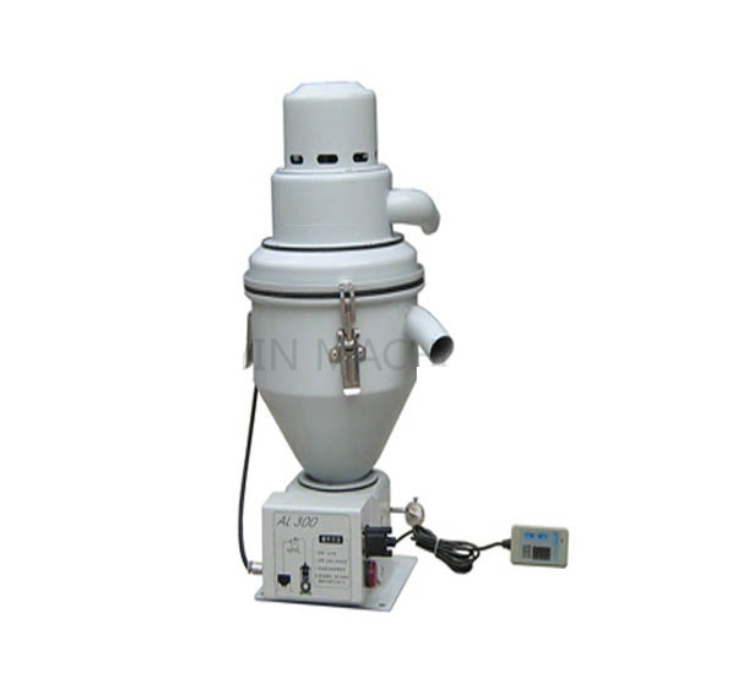

2, Auto Loader: use to load virgin resins to the hopper of the extrudor

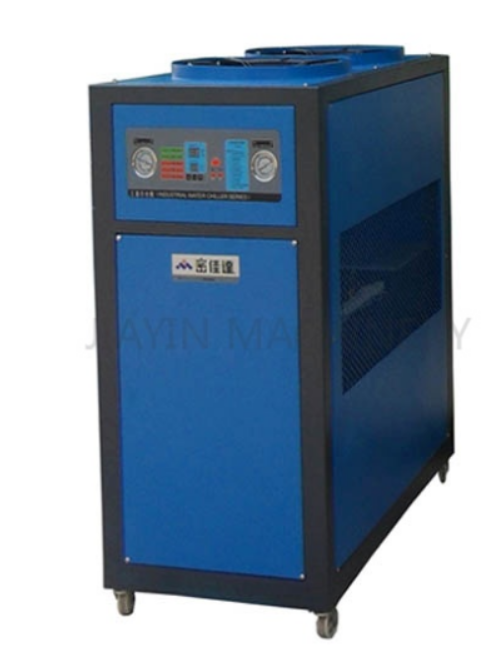

3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;

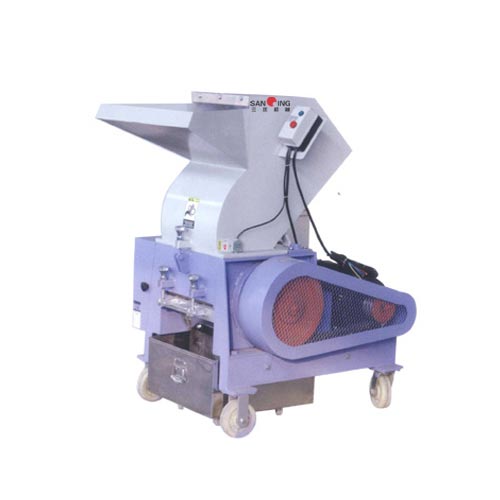

4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).
5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.
