Ocean ball Machine
SANQIANG

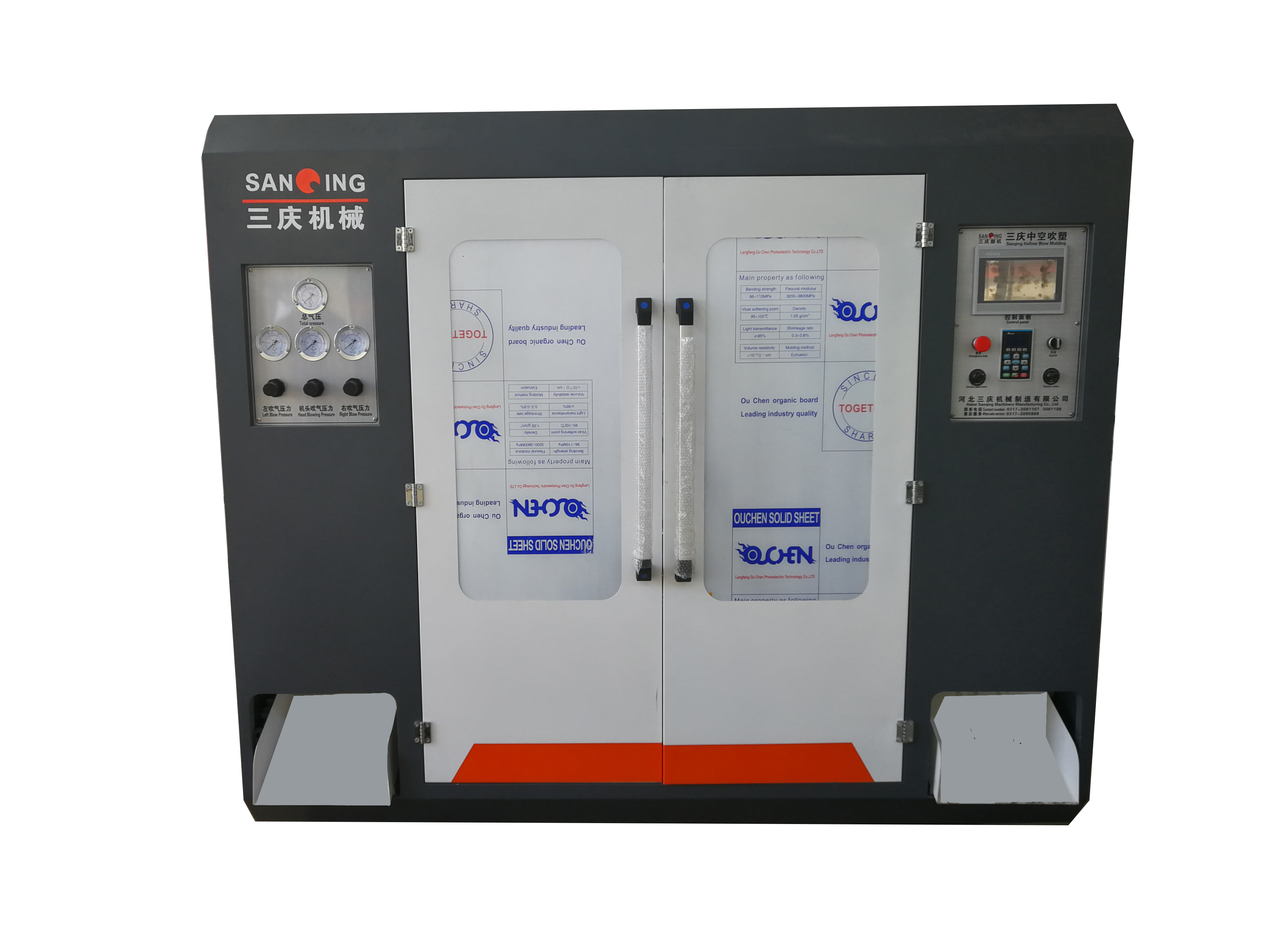

Full auto Ocean ball/Seaball Blow Molding Machine
This seaball blow molding machine was designed for sea ball products only, which is suitable to produce LDPE material sea balls from 5cm to 10cm. Customer could either choose single die head or double die heads. Two sides working stations could be install deflashing devices to achieve automatic working process.
Customer could choose 65mm or 75mm screws, if customer needs 6 or 8 cavities per mold, then 75mm extruder is necessary, because it could make larger volume of plastic materials per hour.
The machine is automatic process, no need manpower for separate waste process.
System | Item | Unit | Basic Parameters |
Basic | Plastic fit for | PE/PP | |
Max hollow product volume | L | 5 | |
No. of Die head | SET | 1 | |
Size(LxWxH) | M | 3.5*2.1*2.2 | |
Weight | TON | 5 | |
No. of Working Station | Set | 2 | |
Molds | Clamping Force | KN | 120 |
Template Distance | MM | 220--620 | |
Template Stroke | 400 | ||
Max template size(WxH) | MM | 480*500 | |
Mould thickness | MM | 225—300 | |
Extrusion System | screw diameter | MM | 75 |
Screw L/D ratio | L/D | 25：1 | |
(HDPE）Plasticizing capacity | KG/H | 70 | |
Screw heating zone | ZONE | 4 | |
Screw heating power | KW | 16 | |
Extrusion motor's power | KW | 22 | |
Die head | Die head heating zone | zone | 3 |
Die head heating power | KW | 9 | |
Sprue-die dia.(max) | mm | 180 | |
Oil-pump motor power | KW | 11 | |
air pressure | Mpa | 0.6--0.8 | |
Average power | KW | 35 | |
Compressed air dosage | m³/min | 1.5--2.5 | |
Cooling water dosage | L/min | 3--5 |
This machine is full automatic multi-die heads blow molding machine with hydraulic closing moulds and pneumatic move moulds.This machine is suitable to produce sauce bottle,seabll、detergent bottle,milk bottle and medinine bottle etc.This machine is controlled by PLC system,with characters as high stability,less resistance,high precision and full antomatic etc.Also unattended operation can be achieved.

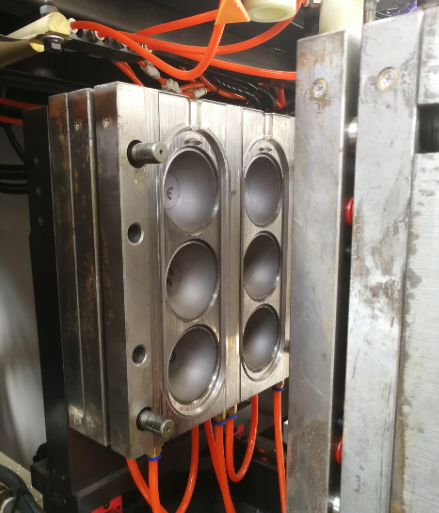

Seaball Molds:
Below balls could be produced by our machine:
Auxiliary Machines(Need to use together with machine)
Only blow molding machine cannot operate, we should use the blow molding machine together with below auxiliary machines:
1, Air compressor: use to supply compressed air

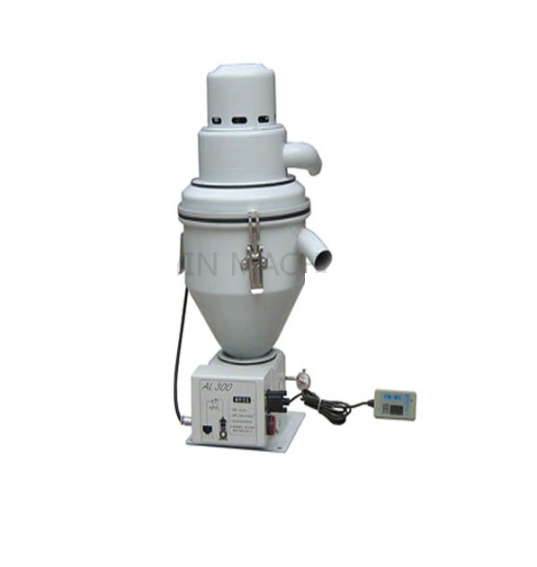

2, Auto Loader: use to load virgin resins to the hopper of the extrudor
3, Chiller: use to cooling the molds, because after long time operation, the molds will become hot;
4, Crusher: for the waste material from the blow molding machine, crusher will break the waste material to be small pieces, so we could use the recycled materil to mix with virgin resins again(customer decied to reuse material depends on the actual condition).
5, Mixer: The recyled material will be mixed with virgin resins and use mixer to mix the materials averagely.
