4 Cavities Milk Bottle Machine
SANQIANG

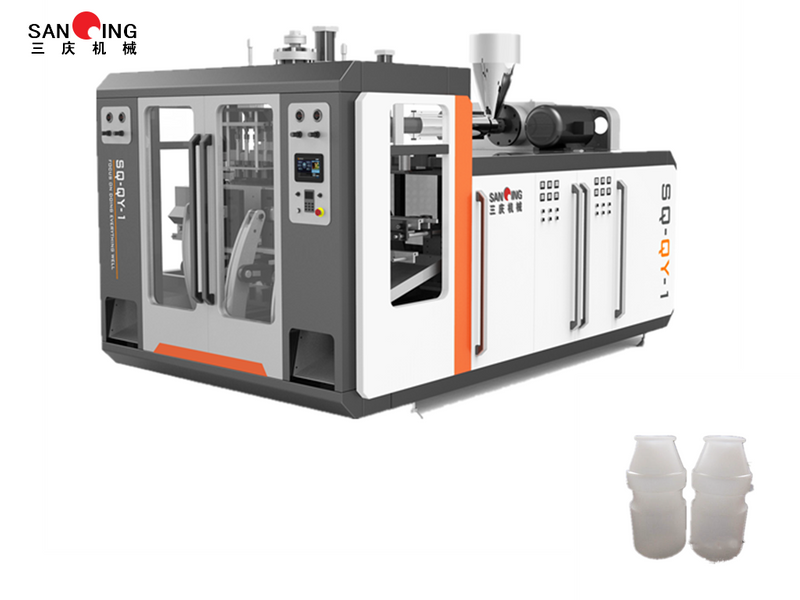

HDPE Milk bottle blowing machine
This type of blow molding machine is able to produce yogurt/milk bottles, hand sanitizer bottles or alcohol bottles as well as sea ball products. It could produce 1 to 4 cavities bottles such as 500ml. This type of machine could deflash bottles automatically, so customer could get final product directly.
This type of machine is full automatic and economical machine, which is famous of its excellent performance and reasonable price. Take example of 500ml bottles, if makes 4 cavities per molds, every hour could reach 1500 pieces per hour.
This machine equiped with hydraulic mold process, the close molds process is enough power, the end product could be similar with customer samples.
System | Item | Unit | Basic Parameters |
Basic | Plastic fit for | PE/PP | |
Max hollow product volume | L | 5 | |
No. of Die head | SET | 1 | |
Size(LxWxH) | M | 3.5*2.1*2.2 | |
Weight | TON | 5 | |
No. of Working Station | Set | 2 | |
Molds | Clamping Force | KN | 120 |
Template Distance | MM | 220--620 | |
Template Stroke | 400 | ||
Max template size(WxH) | MM | 480*500 | |
Mould thickness | MM | 225—300 | |
Extrusion System | screw diameter | MM | 75 |
Screw L/D ratio | L/D | 25：1 | |
(HDPE）Plasticizing capacity | KG/H | 70 | |
Screw heating zone | ZONE | 4 | |
Screw heating power | KW | 16 | |
Extrusion motor's power | KW | 22 | |
Die head | Die head heating zone | zone | 3 |
Die head heating power | KW | 9 | |
Sprue-die dia.(max) | mm | 180 | |
Oil-pump motor power | KW | 11 | |
air pressure | Mpa | 0.6--0.8 | |
Average power | KW | 35 | |
Compressed air dosage | m³/min | 1.5--2.5 | |
Cooling water dosage | L/min | 3--5 |
Products can be made by this type machine:
This machine is full automatic multi-die heads blow molding machine with hydraulic closing moulds and pneumatic move moulds.This machine is suitable to produce sauce bottle,seabll、detergent bottle,milk bottle and medinine bottle etc.This machine is controlled by PLC system,with characters as high stability,less resistance,high precision and full antomatic etc.Also unattended operation can be achieved.
